So wird's gemacht:
Bebilderte Montageanleitung von Schlauchschellen nach DIN 3017-2

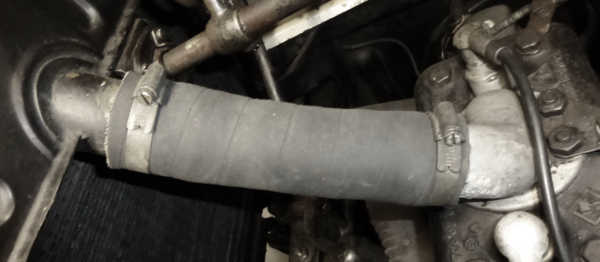

Vorher
![Vorher](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-0.jpg)

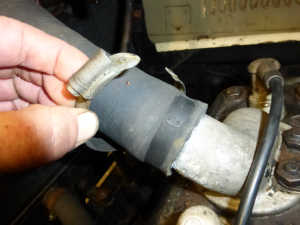

1. Unpassende Schelle demontieren
![](https://www.esys.co/wp-content/uploads/2016/10/Schlauchbriden-demontieren.jpg)

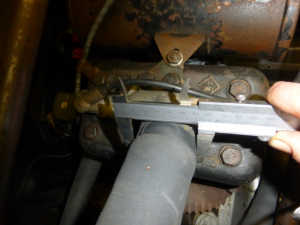

2. Durchmesser auf montiertem Schlauch messen
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-2.jpg)

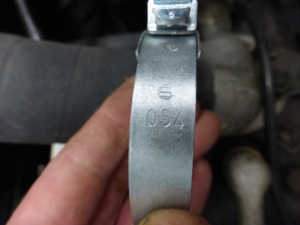

3. Passende Schelle auswählen
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-3.jpg)

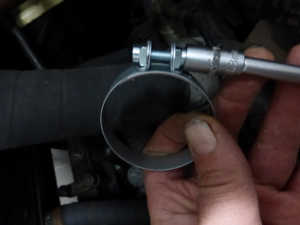

4. Schelle öffnen
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-4.jpg)

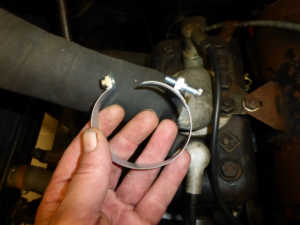

5. Schelle weiten
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-5.jpg)

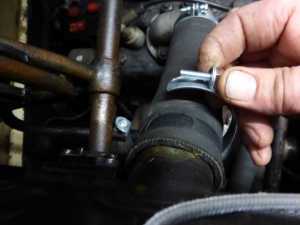

6. Schelle um montierten Schlauch ziehen
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-6.jpg)

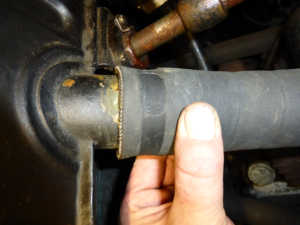

7. Zur Sicherheit Wulst ertasten
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-7-1.jpg)
8. Schelle lagerichtig hinter Wulst ansetzten
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-8.jpg)

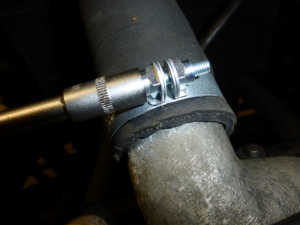

9. Schelle mit Gefühl andrehen
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-9.jpg)

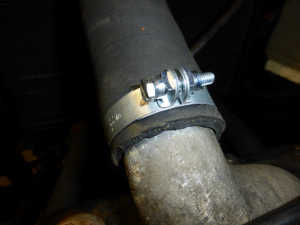

10. Fertig
![](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-10.jpg)

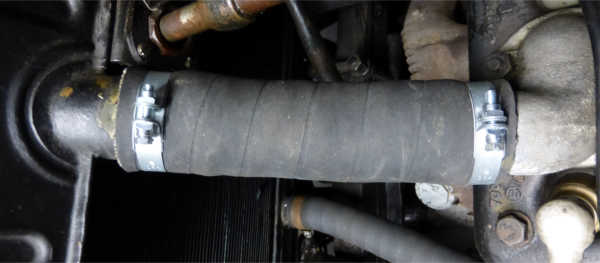

Nach dem Umbau
![Nach dem Umbau](https://www.esys.co/wp-content/uploads/2016/10/Schellen-montieren-11.jpg)
